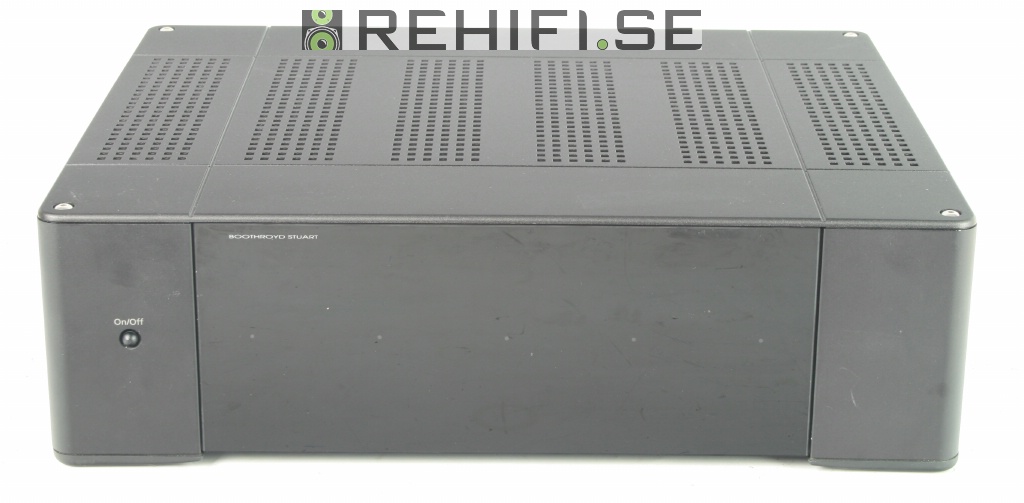

Meridian G55

5 channels at 100W into 8Ù, or 2 channels at >300W
into 8Ù (bridge mode)
Distortion: Less than 0.01% input to output
Signal/Noise: Better than –100dB
Inputs: Balanced on XLR-3F connectors and unbalanced on
phono
Outputs: 2 output sets per channel, terminal posts
Construction: 25 pairs of 15amp output devices and 68,000ìF of audiophile-
grade PSU smoothing capacitors. Ultra low
impedance error-corrected output stage. DC coupled,
with no capacitors in the signal path. Soft start and
thermal management in main assembly. Optimised
magnetic design based on DSP8000. Meridian black
or silver finish in metal & glass
Dimensions: Width: 440mm (17.32in); Depth: 350mm (13.78in)
plus connectors; Height: 132mm (5.20in)
Rack Mounting: Kit available from Meridian authorized dealers
Weight: 20 kg (44 lbs)
Controls: Rear-panel power switch; per-channel switches for
balanced or single-ended input; Bridge/Stereo mode
switches on channels 1 and 5
Trigger: Wide voltage-range (5–30V, AC/DC) trigger input for
remote standby/on switching
Display: Power/Fault indicator and per-channel operation
