Produktgruppe: CD Geräte

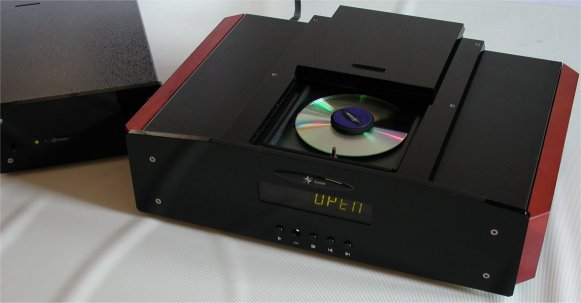

LECTOR Laufwerk-Wandler Kombo mit Sym. Röhrenausgangsstufe! Vorführbereit!
22.11.2006
It"s realy difficult to understand the limitation of C.D.player!
We hope to have design and built a C.D.player transport with important improvements :
with our perfect mania to make critical parts as cabinet (alluminium aereospace type) a special digital output transformer (Olla hi energy flux type) our mods.and tips on C.D.M. mechanism (renforcements by alluminium plate and mods.on laser pick-up) the solution of real-genuine top loading cd-player without any mechanical stabilizer incorporate in the cover, three types of digital output coaxial as: two SPDIF (RCA+BNC) and by AES/EBU (professional XLR).
For reduce interference magnetic of power transformer we have make a separate power supply unit .All this solution make a great and special CD TRANSPORT that we call DIGIDRIVE top loading and it"s perfect partner is our DAC TUBE DIGICODE.
Techs:
Digi Drive:
- CD player transport mechanism top loading
- Digital out Three two SPDF and one as AES-EBU
- Output impedance 75 ohms spdf / 110 ohms Aes/Ebu
- Cable recommended BNC-BNC type / XLR professional cable
- External Power supply 220vac 70va
- Dimension 400 x 85 x 300 (l x h x p) mm.
- Weight 12.5 kg
Digi Code:
Digital to Analog convertor, full balanced tube output and special digital input set-up function
- Harmonic distorsion THD Better than 0.1 %
- DAC type and filter 24 bit four mono dac PCM1704
- Signal to noise ratio 100 db (A)
Tube for preamplification stage 4 x ECC-81/12 AT 7 selected by Lector during testing
- Frequency response 20 - 22 Khz +/- 1.5 db
- Digital inputs SPDIF (2) AES-EBU (1)
- Analog line outputs one pair RCA, 1 pair XLR balanced at 3.0 V 250 ohm
- External power supply 230 V ac 50/60 Hz 70 V/a
- Dimension main unit 420x300x110 (L x P x H) mm
- Dimension power supply: 200x300x85 (L x P x H) mm
- Weight 9 Kg
