Produktgruppe: D/A Wandler

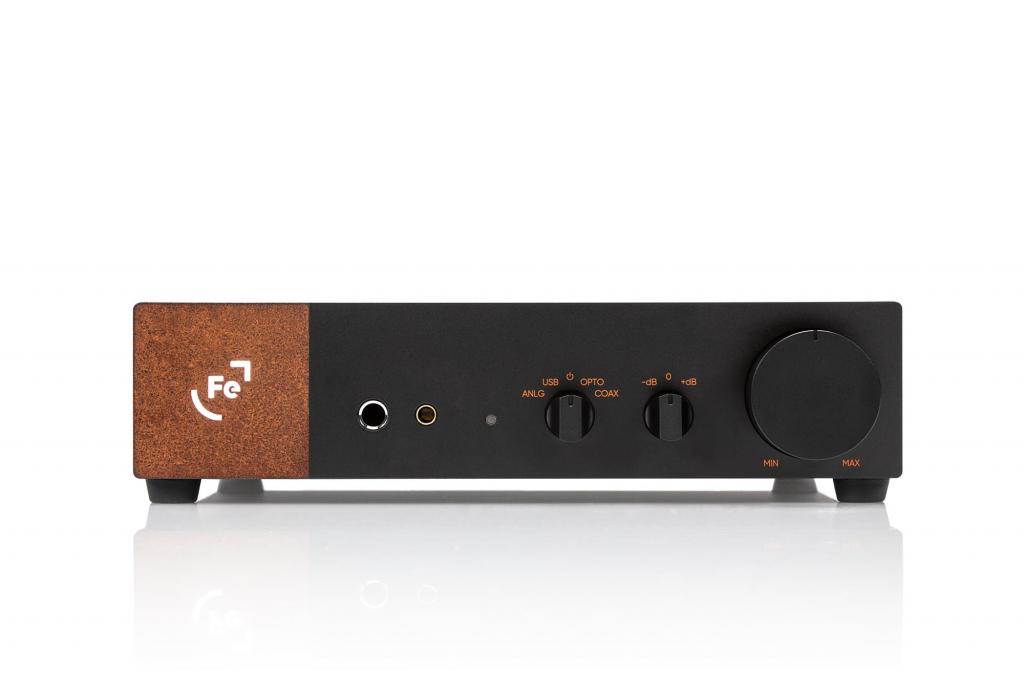

Ferrum Audio - A new star is born Audio - A new star is born! DAC/headamp ERCO !!!
31.03.2022
ERCO ... brandneu ... lagernd! ... DAC + headamp!!!
OOR ... ein Geniestreich ... State-of-the-art Kopfhörerverstärker! Lagernd!
HYPSOS: EISA Award 2021/2022 Hifi Accessoires!!! Lagernd!
Brandneu, konkurrenzlos und DIE Entdeckung im Bereich externe Netzteile!!! Siehe auch www.sixmoons.com
Neue Webseite seit 12.10.2020!
Instagram unter #audition.6
Ebay Angebot unter "vip-exklusiv"
Erfragen Sie IHR Angebot! Please ask for YOUR individual offer!
Headphone output gain: balanced -5.8 dB, +6 dB, +17.8 dB; single ended -11.8 dB, 0 dB, +11.8 dB
Operation: fully balanced, proprietary IC power amp
Power inputs: 5.5/2.5 mm DC connector center positive; proprietary FPL 4-pin DC connector (FPL)
Analog inputs: RCA (Consumer level; Pro option with future software update)
Digital inputs: USB-C (all formats); S/PDIF optical (up to 24-bit/192 kHz, DoP64); Coaxial (up to 24-bit/96 kHz, DoP64)
DAC chip: ESS Sabre ES9028PRO
PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz
DSD sample rates: 2.8224 / 3.072 / 5.6448 / 6.144 / 11.2896 / 12.288 MHz
MQA: decoder and renderer
DAC resolution: PCM up to 384k@32bit; DSD up to 256 (11.2 MHz / 12.2 MHz)
Headphone jack outputs: balanced 4.4 mm (TRRRS); unbalanced 6.35 mm (TRS)
Line outputs: balanced XLR; unbalanced RCA (both Consumer level; Pro with future software update)
Volume control: analogue with bypass option (bypass for line outputs only)
Frequency response: 10 Hz – 30 kHz (+/- 0.05 dB) 10 Hz – >200 kHz (+/- 1 dB)
Output power unbalanced: 300 mW into 300 Ω; 1,7 W into 50 Ω
Output power balanced: 1.2 W into 300 Ω; 6.1 W into 50 Ω
THD on balanced output: < 0.00018% / -115 dB, 1 mW into 16 Ω; < 0.00018% / -115 dB, 100 mW into 16 Ω
THD on unbalanced output: < 0.00032% / -110 dB, 1 mW into 16 Ω; < 0.00057% / -105 dB, 100 mW into 16 Ω
Dynamic range analog: 130 dB (A-weighted)
Dynamic range digital: 120 dB (A-weighted)
Input impedance: 47 kΩ
Output impedance unbalanced: 22 Ω on pre-amp
Output impedance balanced: 44 Ω on pre-amp
Output impedance Headphones: < 0.3 Ω
Power consumption: idle
