Ferrum Audio - A new star is born
25.04.2021
Siehe großer Test in Hifistatement, STEREO Mai 2021 sowie Kurzbericht STEREO Februar 2020 + Annonce!!!
Brandneu, konkurrenzlos und DIE Entdeckung im Bereich externe Netzteile!!! Siehe auch www.sixmoons.com
Neue Webseite seit 12.10.2020!
Instagram unter #audition.6
Ebay Angebot unter "vip-exklusiv"
Erfragen Sie IHR Angebot! Please ask for YOUR individual offer!

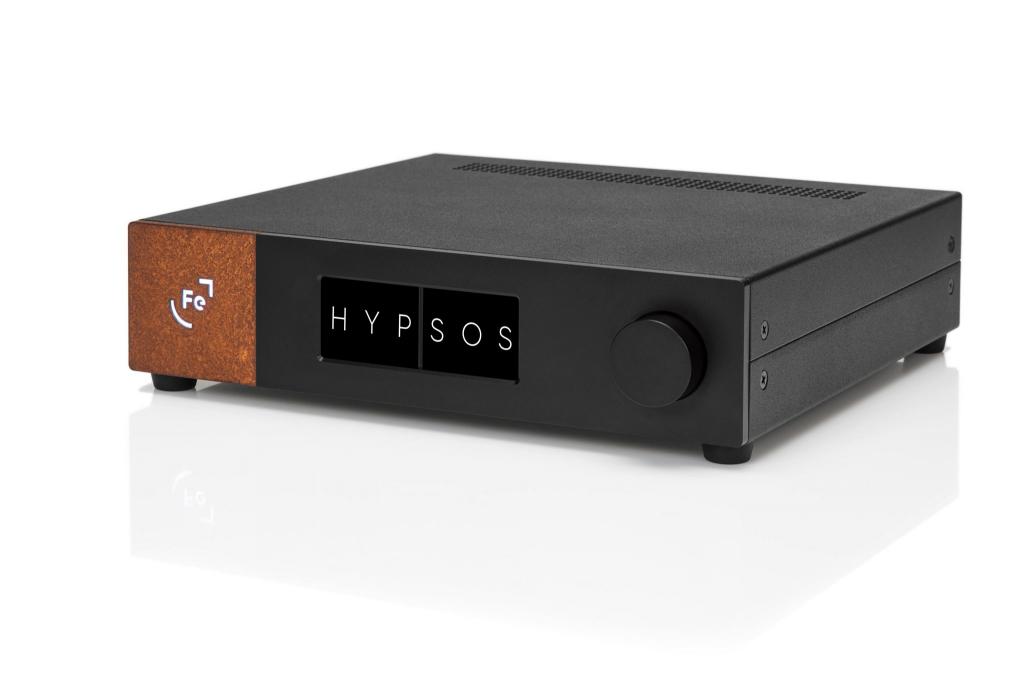

HYPSOS defines a brand new category of a hifi products. It’s not a simple power supply but an audio component of its own – an equally (or even more) important part of a setup as any other. HYPSOS offers a selection of unique features and even accounts for future software improvements – the device is software controlled with as few hardware dependent elements as possible.
Power input:
110-240Vac/50-60Hz (EU/US Version)
90 – 110Vac/50-60Hz (JP Version)
IEC C14 power inlet, a fuse holder with power on/off switch plus two-stage EMI filter for low impedance load with better noise attenuation in low frequency applications
Mains cable: US/EU/UK
DC OUT cable: 5×2.5mm DC plug / 5×2.1mm DC plug
Custom cables made to order at additional cost
Output Voltage Range: 5-30 [V]
Max Continuous Output Current (for V_out below 10V): 6 [A]
Max Continuous Output Current (for V_out higher than 10V): l_out= 60[W] / DCout[V]
Max Continuous Output Power (for V_out below 10V): P_out = V_out[V] * 6[A]
Max Continuous Output Power (for V_out higher than 10V): 60W
Dimensions (without knob, feet and connectors) (W x D x H , mm / inches): 217.5 x 206.5 x 50.0 / 8.6 x 8.1 x 2.0
Net weight (kg / lb): ~ 2,8 / ~ 6.2
Primary winding fuse: IEC 5x20mm fuse, 3.15AT, 250V
Secondary winding fuse: Littelfuse 154004T, 4A
Power consumption (idle): TBD
Angebote, Neugeräte, Vorführgeräte und weitere Informationen gerne auf
Anfrage unter
Audition 6
Heiko Boss
Achalmstr. 6
72461 Albstadt
Germany
Helene-Weber-Allee 2
80637 München
Tel. 07432/23399
Mobil: 0151/12419673
Mail: info@audition6.de
Web: www.audition6.de
