Produktgruppe: CD Geräte

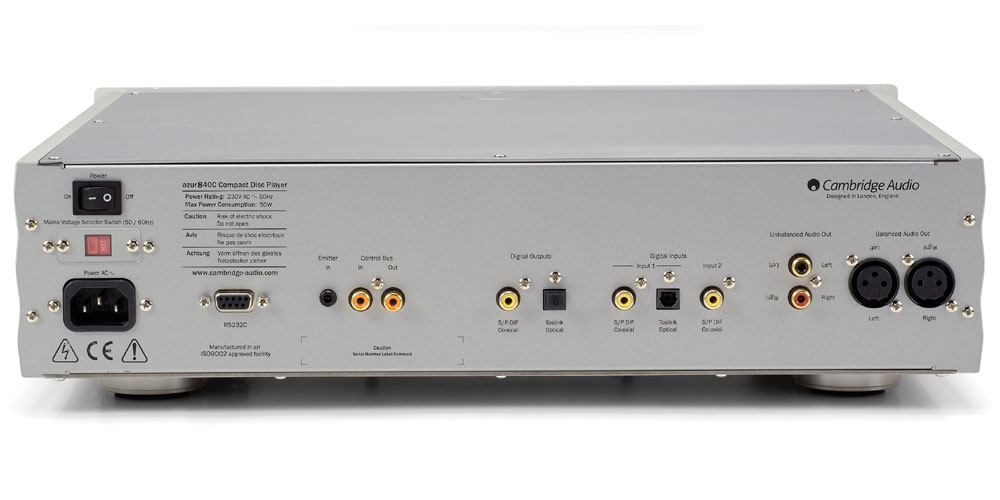

CD-Spieler mit üppiger Ausstattung 840C von Cambridge
25.06.2007
Der CD-Spieler enthält neueste Technologien und viele neue Funktionen .
Ausstattung:
Adaptive Time Filtering (ATF) asynchronous up-sampling technology converting 16-bit 44.1 kHz CD data to 24-bit 384kHz
32-bit Analog Devices Black Fin DSP
Dual differential DAC configuration using high-end Analog Devices AD1955 DACs
Fully differential anti-aliasing topolopgy based on linear phase Bessel filters
DC servo circuitry with no capacitors in the signal path
Two digital inputs allowing up-sampling and playback of other sources
Digital outputs allow recording of up-sampled audio
Control Bus In/Out, IR emitter in and RS232 for easy multi-room compatibility
Extruded aluminium side panels and solid aluminium front panel plus an ultra rigid, acoustically dampened chassis
Navigator style Azur remote control which also controls Azur amplifiers
Available in silver or black
Technische Daten:
Frequency Response: 20Hz - 20kHz +/- 0.1dB
THD < 1Khz 0dBFs: < 0.0008%
THD < 1kHz -10dBFs: < 0.0004%
THD < 20kHz 0dBFs: < 0.002%
THD < (19/20kHz) 0dBFs: < 0.0002%
Linearity @ -90dBFs: +/- 0.5dB
Stopband rejection (>24kHz): > 120dB
Signal to Noise Ratio A-wtd: > 113dB
Total correlated jitter: > 130pS
Crosstalk @ 1kHz: > -130dB
Crosstalk @ 20kHz: > -114dB
Output impedance: > 50 ohms
Digital input word widths supported: 16 - 24 bit
Digital output word widths supported: 16, 20, 24 bit
Digital input sampling frequencies supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Digital output sampling frequencies supported: 32kHz - 192kHz pass through (including 44.1kHz for CD) 48kHz, 96kHz, 192kHz upsampled
Audio output up-sampling: Fixed 24 bit, 384kHz
Dimensions (W x D x H): 115 x 430 x 360mm
Weight: 8.5kg
Price 1500 €
In der Zeitschrift imagehifi Heft 3/2007 finden Sie einen ausführlichen Testbericht von Roland Kraft
