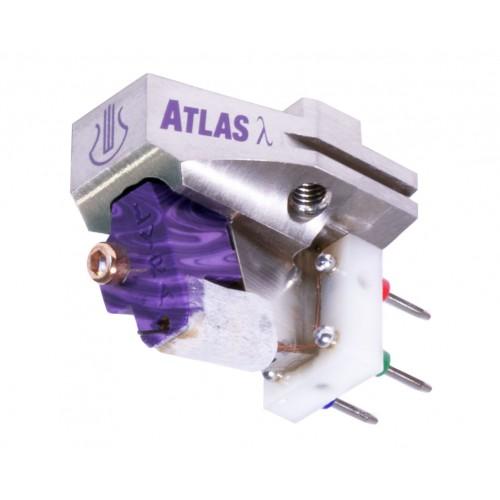

Lyra Lyra Atlas Lambda
Preis: 6.300,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- Kartuschen
- Hersteller
- Lyra
- Funktion
- einwandfrei
- Alter
- 6 Monate Nach Schätzung
- Gebrauchszustand
- gebraucht
- Optik
- neuwertig
- Zubehör
- komplett mit OVP
- Farbe
- Lila
- Neupreis
- 13.250,00 €
- Preis
- 6.300,00 €
- Weitere Informationen
- http://www.lyraconnoisseur.com/Products/Products.html
Beschreibung
Lyra Atlas Sl Lambda used for about 250 hours in reference Turntable Tonearm Combo in very good condition in original box.
Price 6300 Euro including 21% vat.
(Exc. Vat 5200 euro when shipped out of EU)
Designer: Jonathan Carr
Builder: Yoshinori Mishima
Type: Medium weight, medium compliance, low-impedance moving coil cartridge
Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (block dimensions 0.08w x 0.12d x 0.5h mm, profile dimensions 3um x 70um), slot-mounted
Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high-pressure knife-edge system
Body: Machined asymmetrical titanium with synthetic composite gemstone
Coils: 2-layer deep, 6N high-purity copper, cross-shaped chemically-purified high-purity iron former, 4.2ohm self-impedance, 11uH inductance
Output voltage: 0.56mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency range: 10Hz ~ 50kHz
Channel separation: Greater than 30dB at 1kHz
Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
Distance from mounting holes to stylus tip: 9.5mm
Cartridge weight (without stylus cover): 11.6g
Recommended tracking force: 1.62 – 1.72g
Recommended load directly into MC phono input: 104ohm ~ 887ohm (detailed guidelines in instruction manual, finalize by listening)
Recommended load via step-up transformer: Use a step-up transformer designed for 3 -6 ohms cartridge impedance (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
Recommended tonearms: Medium to Medium-High mass arms recommended, which is bulk of tonearm market
Price 6300 Euro including 21% vat.
(Exc. Vat 5200 euro when shipped out of EU)
Designer: Jonathan Carr
Builder: Yoshinori Mishima
Type: Medium weight, medium compliance, low-impedance moving coil cartridge
Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (block dimensions 0.08w x 0.12d x 0.5h mm, profile dimensions 3um x 70um), slot-mounted
Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high-pressure knife-edge system
Body: Machined asymmetrical titanium with synthetic composite gemstone
Coils: 2-layer deep, 6N high-purity copper, cross-shaped chemically-purified high-purity iron former, 4.2ohm self-impedance, 11uH inductance
Output voltage: 0.56mV@5cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
Frequency range: 10Hz ~ 50kHz
Channel separation: Greater than 30dB at 1kHz
Compliance: Approx. 12 x 10-6cm/dyne at 100Hz
Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
Cartridge mounting screws: 2.6mm 0.45 pitch JIS standard
Distance from mounting holes to stylus tip: 9.5mm
Cartridge weight (without stylus cover): 11.6g
Recommended tracking force: 1.62 – 1.72g
Recommended load directly into MC phono input: 104ohm ~ 887ohm (detailed guidelines in instruction manual, finalize by listening)
Recommended load via step-up transformer: Use a step-up transformer designed for 3 -6 ohms cartridge impedance (step-up transformer’s output must be connected to 10kohm ~ 47kohm MM-level RIAA input, preferably via short, low-capacitance cable)
Recommended tonearms: Medium to Medium-High mass arms recommended, which is bulk of tonearm market
