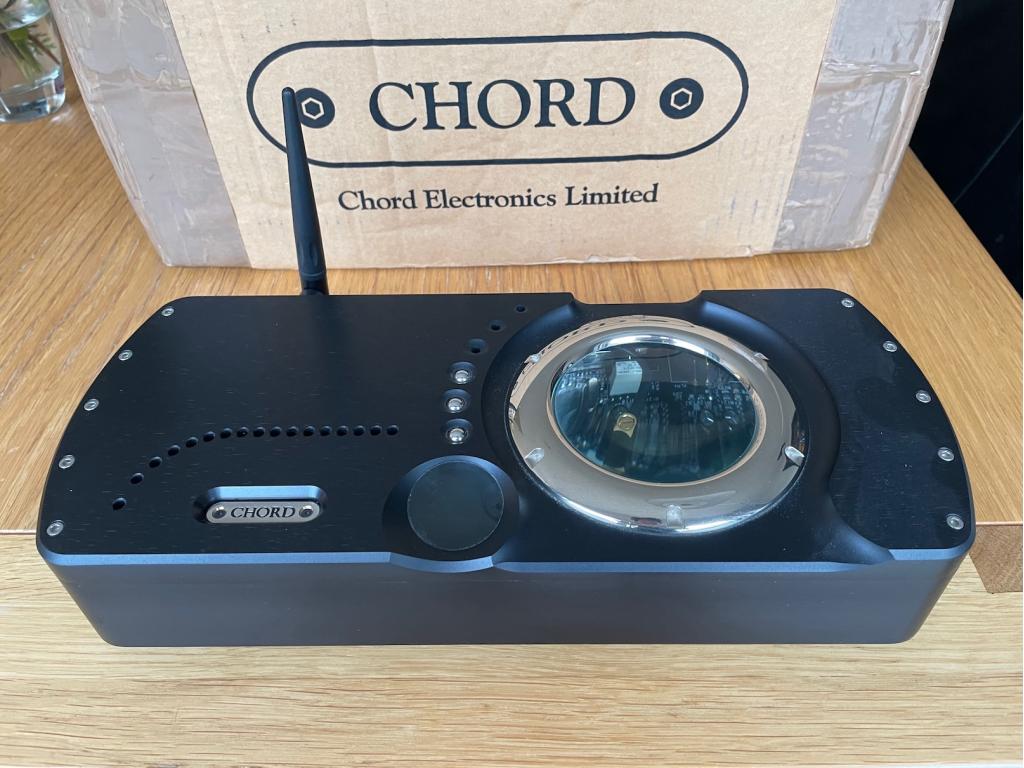

Chord Electronics Chord QBD76
Preis: 2.150,00 €
| Gebrauchtgerät
Produktdetails
- Produktgruppe
- D/A Wandler
- Hersteller
- Chord Electronics
- Funktion
- einwandfrei
- Alter
- 15 Jahre Nach Schätzung
- Gebrauchszustand
- gebraucht
- Optik
- neuwertig
- Zubehör
- komplett mit OVP
- Farbe
- Schwarz
- Neupreis
- 6.200,00 €
- Preis
- 2.150,00 €
- Weitere Informationen
- http://www.chordelectronics.co.uk/
Beschreibung
Chord QBD76 – einer der besten DA-Wandlers in seiner Klasse.
' Built like a tank'
Optisch und technisch in einem super Zustand, Erstbesitz
Komplett mit OVP, Manual und Netzkabel.
Any DAC will convert a digital stream to analog, and where they differ in functionality is how many different types of digital stream can be accommodated. This one can take standard 16-bit/44.1kHz inputs of course, but also high resolution PCM up to 24-bit/192kHz. There are two AES Balanced XLR inputs, two 75 Ohm SP/DIF BNC Coax inputs, two TosLink inputs and a USB (type B) input, in addition to a true CD quality wireless link using the A2DP option under Bluetooth. You need the dual inputs to accept the high resolution 24-bit/192kHz or 24-bit/176.4kHz digital signals. If you buy the matching Chord Blu Transport, it will have the corresponding dual outputs.
Sample Frequencies:
44.1Khz, 48Khz, 88.2Khz, 96Khz, 176.4Khz, 192Khz.

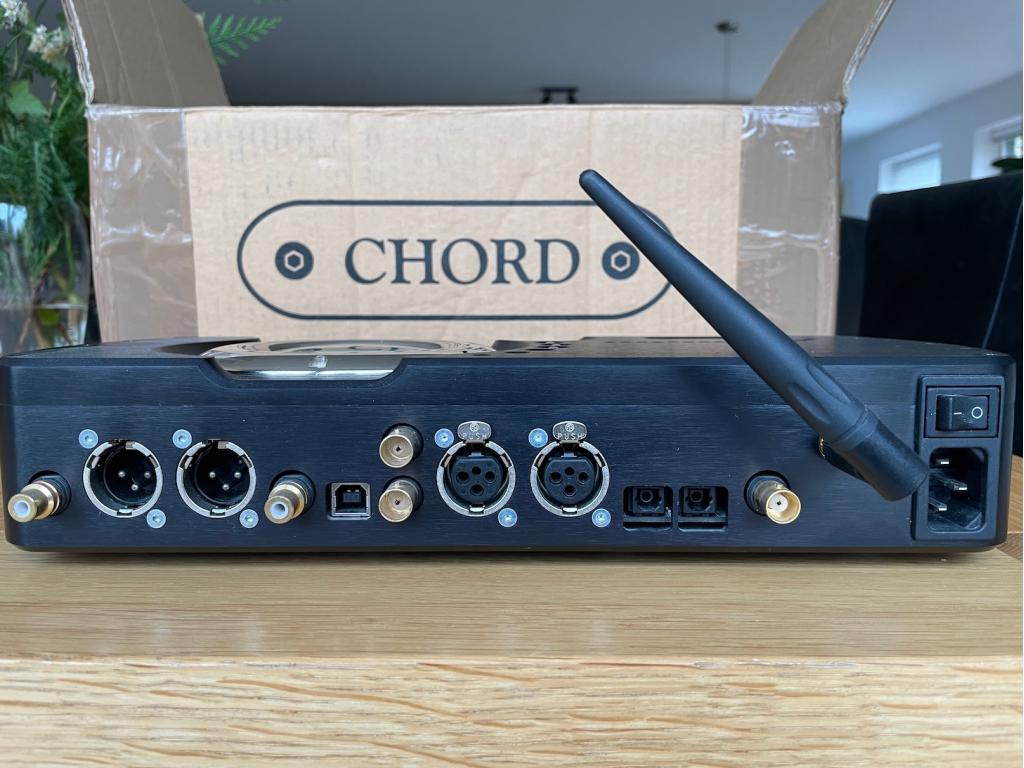

Audio Outputs
There is one pair of Left & Right fully balanced outputs, via Neutrik XLR style connectors and one pair of Left & Right unbalanced outputs, via gold plated RCA phono style connectors. Each of these will drive down to a 50ohm load. This means that the QBD76 will work with all known preamplifiers and is able to drive very long audio cables without difficulty. Both audio outputs work at the same time, this allows the QBD76 to be connected to two pre-amplifiers if needed.
Specifications
Type: Digital to analog converter (DAC)
Harmonic Distortion: < -103dB at 1 kHz 24-bit at 44.1 kHz
Signal To Noise ratio: > 120dB
Channel Separation: > 125dB at 1kHz
Dynamic Range: 122dB
Digital Inputs:
2 x 75 Ohm S/PDIF BNC Coax
2 x AES Balanced XLR Input
2 x Plastic fiber optic (TosLink)
1 x USB (B type)
1 x Bluetooth supporting A2DP Stereo Audio
RAM Buffer: Off, minimum (1 sec), maximum (4 secs)
Phase Switch: Positive or negative output phase
Sample Frequencies:
44,1 kHz to 96 kHz single cable
176.4 kHz and 192 kHz double cable
Maximum Output: 3V (unbalanced), 6V (balanced)
Output Impedance: 75 Ohm
Dimensions: 33.8cm x 6cm and 14.5cm
Chassis Material: Solid aluminum in black finish
Weight: 7kg
' Built like a tank'
Optisch und technisch in einem super Zustand, Erstbesitz
Komplett mit OVP, Manual und Netzkabel.
Any DAC will convert a digital stream to analog, and where they differ in functionality is how many different types of digital stream can be accommodated. This one can take standard 16-bit/44.1kHz inputs of course, but also high resolution PCM up to 24-bit/192kHz. There are two AES Balanced XLR inputs, two 75 Ohm SP/DIF BNC Coax inputs, two TosLink inputs and a USB (type B) input, in addition to a true CD quality wireless link using the A2DP option under Bluetooth. You need the dual inputs to accept the high resolution 24-bit/192kHz or 24-bit/176.4kHz digital signals. If you buy the matching Chord Blu Transport, it will have the corresponding dual outputs.
Sample Frequencies:
44.1Khz, 48Khz, 88.2Khz, 96Khz, 176.4Khz, 192Khz.
Audio Outputs
There is one pair of Left & Right fully balanced outputs, via Neutrik XLR style connectors and one pair of Left & Right unbalanced outputs, via gold plated RCA phono style connectors. Each of these will drive down to a 50ohm load. This means that the QBD76 will work with all known preamplifiers and is able to drive very long audio cables without difficulty. Both audio outputs work at the same time, this allows the QBD76 to be connected to two pre-amplifiers if needed.
Specifications
Type: Digital to analog converter (DAC)
Harmonic Distortion: < -103dB at 1 kHz 24-bit at 44.1 kHz
Signal To Noise ratio: > 120dB
Channel Separation: > 125dB at 1kHz
Dynamic Range: 122dB
Digital Inputs:
2 x 75 Ohm S/PDIF BNC Coax
2 x AES Balanced XLR Input
2 x Plastic fiber optic (TosLink)
1 x USB (B type)
1 x Bluetooth supporting A2DP Stereo Audio
RAM Buffer: Off, minimum (1 sec), maximum (4 secs)
Phase Switch: Positive or negative output phase
Sample Frequencies:
44,1 kHz to 96 kHz single cable
176.4 kHz and 192 kHz double cable
Maximum Output: 3V (unbalanced), 6V (balanced)
Output Impedance: 75 Ohm
Dimensions: 33.8cm x 6cm and 14.5cm
Chassis Material: Solid aluminum in black finish
Weight: 7kg
