Product category: D/A Converter

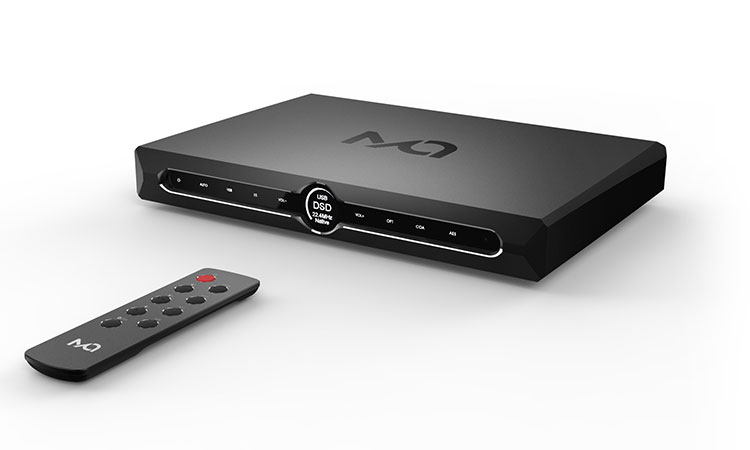

X-SABRE PRO von MATRIX AUDIO
10.12.2017
Bei dem X-SABRE PRO handelt es sich um einen
32 Bit/768kHz DSD1024 DAC which equipped
with ES9038PRO D/A Chip.
Hersteller ist die Firma MATRIX AUDIO.
Hier die Information aus der Herstellerseite:
Gorgeous Upgrade
The pure DAC X-SABRE finally ushered in her
comprehensive upgrade.
X-SABRE Pro dress up a new generation of the world's top D/A
chip,not only inherited the fine lineage of previous
generation,but also added a number of convenience features,
all above to make it transformed into a new generation
flagship DAC of Matrix.
X-SABRE Pro is a DAC equipped with ES9038PRO D/A chip,
that has been first put into mass production in China
or even around the world.
Matrix fully explored this advanced 8-channel D/A chip's
potential,compared to the previous generation ES9018S,
ES9038PRO fully optimizes the internal DSP units, further
improve the performance and customer use experience.
We selected the excellent audio components and well-designed
circuit layout to making X-SABRE Pro's SNR reached an
incredible -134dB.
Full Port DSD
From now on, DSD audio stream is not limited to playback
through the USB port, X-SABRE Pro support DoP or dCS from
optical, coaxial and AES/EBU input,
convenient to connect digital music player which with the
DoP/dCS output function.
IIS Port
X-SABRE Pro is equipped with the most complete input ports
of this series, in addition to optical, coaxial, AES/EBU, USB
ports,
we even added a IIS·LVDS input via a HDMI connector
to differential transmit I2S signal, maximize the transmission
performance of the IIS port, to make the data from the short-
distance transmission between the chips into high-speed
interconnection between the devices, get rid of the USB
transmission or S/PDIF transmission
re-encoding, and let the original digital audio stream
directly into the D/A chip.
NOTE:
The IIS LVDS port is not a commonly used interface,
currently, it has no uniformed interface standard.
"In line with PS AUDIO standard" refers to the signal
definition of HDMI connector is defined exactly the same with
PS AUDIO device,
but it is not guaranteed that the X-SABRE Pro is compatible
with all the devices conformed to this definition.
DSD1024 PCM768
As a new generation of Matrix flagship DAC, X-SABRE Pro
not only supports 32Bit/768kHz PCM audio stream playback,
but also supports DSD64, DSD128, DSD256, DSD512,
and even supports DSD1024 with the sample rate
of 45.158MHz via I2S input port.
Built-in Pre-AMP
The line output of X-SABRE Pro can be configured
with a +18dB digital gain.
It's not necessary to add an additional pre-amplifier
for low-gain active speakers.
X-SABRE Pro also can work with power amplifier more
conveniently and flexibly.
Remote Control
We added infrared remote control to X-SABRE Pro.
Einen ausführlichen Bericht finden Sie in der Zeitschrift
einsnull
Preis 1.900,00 €
