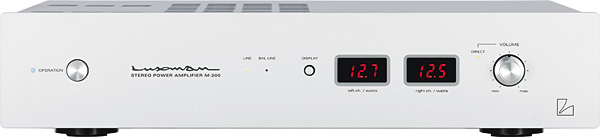

Stereo Power Amplifier M-200 von Luxman
22.08.2013
New from Luxman is the M-200, a highly capable and versatile
power amplifier which has a B4 sized enclosure and features
Luxman specialist high sound quality amplification circuits.
M-200 is designed to be portable and completely compatible
with fresh new audio source components and high performance
audio applications coming to market, such as computer music
sources.
What’s more, its rated output is 25W+25W(8Ω), concentrating on
the ultimate sound quality rather than specmanship quantity.
As a high quality stereo amplifier, M-200 can be used with
various audio components,
such as the USB D/A converter DA-200 with high-grade built-in
potentiometers and pre-amplification circuit which was
launched last autumn.
When used in combination with M-200 and connected to PC or Mac
via a USB cable, you will experience a rich and detailed
musical experience, no matter whether using digital or analog
audio sources.
Furthermore, in BTL mode M-200 can work as a mono amplifier
with 70W(8Ω) output to achieve greater driving forces for
large-caliber speakers. You can also activate/deactivate its
built-in pre-amplifier and add discrete pre-amplification if
you prefer to do so, making the M-200 highly versatile in a
variety of applications.
The front panel display is able to process and track
reproduced signals in real-time. It is also equipped with a
digital power meter (backlighting can be switched off), which
can be switched between Speaker Impedance, Hold Time and other
digital settings. All the above provide you a visual and
informative feast while enjoying the music.
Instead of rigidly adhering to the traditional audio forms, M-
200 introduces modern high performance parts and assemblies
that will meet the requirements of the most demanding
audiophile.
This LUXMAN fully-featured new product provides both beginners
and hi-fi experts with a wide variety of audio solutions.
General description Stereo Power Amplifier
Continuous Rate Output (Stereo/gain ) 25W+25W(8Ω),
35W+35W(4Ω)/23dB
Continuous Rate Input (BTL Mono/gain) 70W(8Ω)/29 dB
Input Sensitivity 1.0V/25W(8Ω)
Input Impedance 16kΩ
Total Harmonic Distortion 0.002%(1kHz(+0, -0.1dB)
0.04%(20Hz~20kHz /8Ω/25W)
Frequency response 20Hz~20kHz(+0, -0.1dB)
10Hz~100kHz(+0, -3.0dB)
Signal-to-Noise 109dB (IHF-A)
Input Sensitivity 1.0V/25W(8Ω)
Input Unbalance (RCA) x 1,
Balance (XLR) x 1
Output Large speaker terminal x 1
Dimensions (W x H x D) 364 ×81 × 295 (mm)
Net weight 6.3kg
